Ton Yu mat

Warm water circulating mat heater

･ Ton Yu mats are made of soft and strong rubber materials

･ Warmed by circulating warm water, so there's no need to worry about fires.

･ Warms from the bottom for more efficient heating.

･ Saves energy by circulating warm water

･ Keeps piglets' bellies warm

Soft and strong rubber materials
Ton Yu mats are made from strong rubber materials, making them gentle on piglets' skin.
Product dimensions : L 1000 × W 500 × T 26 (mm)
Weight Approximately 18kg

Warmed by circulating warm water, so there's no need to worry about fires.

Ton Yu mats are rubber mat heaters which use warm water.
No worries about fires as with general gas fueled heaters. Also no worries about the short circuits caused by electrical heaters. Warm water heated by a boiler outside the pig house is circulated for warming, so no flame is used directly inside the pig house, allowing for safe use.

Warms from the bottom for more efficient heating.

Are you overheating?

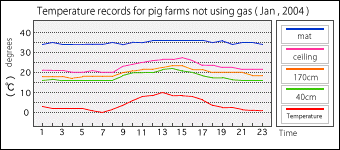

Efficiently heats the interior of the pig house by warming from below as with heated flooring. The graph at left shows record from Terada Giken LLC for January of 2004.
32 Ton Yu mats were used in the birthing area with no gas heating at all.
Even during winter the room temperature was maintained at around 20°C.

Saves energy by circulating warm water

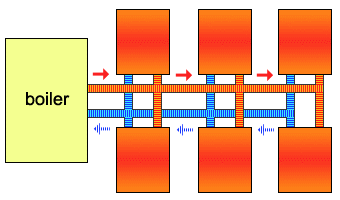

Warm water is repeatedly circulated from the "boiler" to the "pump" to the "Ton Yu mats" and then back to the "boiler" again. Once the water temperature reaches the set temperature, temperature is maintained using only residual heat and occasional reheating which saves energy.
Ton Yu mats using a circulating oil boiler have been shown to be almost 1/3 of the cost of general gas heater heating costs.
(According to testing results from Terada Giken LLC Pig Farm)

Keeps piglets' bellies warm at all times
The Ton Yu mat surface temperature can be adjusted via the warm water, so the optimal temperature for piglets can always be maintained.
Ton Yu mat surface temperature measurement records
surface temperature : 24ºC
water temperature : 55ºC		 surface temperature : 24ºC
water temperature : 60ºC
